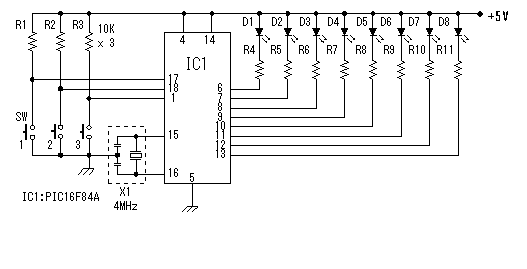

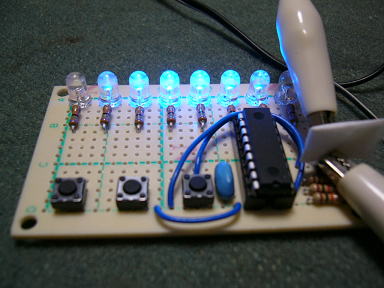

list p=pic16f84a
include p16f84a.inc
__config _hs_osc & _wdt_off & _pwrte_on & _cp_off
errorlevel -302 ;Eliminate bank warning
;**************** Label Definition ********************
cblock h'0c'
loop_cnt ;Loop counter for LED cnt
led_data0 ;LED data 0
led_data1 ;LED data 1
led01 ;LED 01 pattern
led10 ;LED 10 pattern
led11 ;LED 11 pattern
port_work ;LED data save area
counter ;Software timer counter
ptn_save ;Pattern number save area
ptn_counter ;Pattern counter
w_save ;W register save area
s_save ;STATUS regi save area
endc
ra0 equ 00 ;RA0 bit
ra1 equ 01 ;RA1 bit
ra2 equ 02 ;RA2 bit
;**************** Speed control data ********************
speed equ 1 ;100ms (+1=50ms)
;************* Brightness control data ****************
led1 equ b'11111110' ;(01) almost dim
led2 equ b'11111010' ;(10) less bright
led3 equ b'11110000' ;(11) bright
;************* Pattern Data Definition ****************
; 1 bright 1 less bright 0 almost dim 0 dim
; 1 0 1 0
;****** Pattern 0 ******
p000 equ b'00000000'
p001 equ b'00000000'
p010 equ b'10000001'
p011 equ b'10000001'
p020 equ b'11000011'
p021 equ b'01000010'
p030 equ b'01100110'
p031 equ b'10100101'
p040 equ b'00111100'
p041 equ b'01011010'
p050 equ b'00011000'
p051 equ b'00111100'
p060 equ b'00111100'
p061 equ b'00100100'
p070 equ b'01100110'
p071 equ b'01011010'
p080 equ b'11000011'
p081 equ b'10100101'
p090 equ b'10000001'
p091 equ b'01000010'
p0a0 equ b'00000000'
p0a1 equ b'10000001'
;****** Pattern 1 ******
p100 equ b'00000000'
p101 equ b'00000000'
p110 equ b'00000001'
p111 equ b'00000001'
p120 equ b'00000011'
p121 equ b'00000010'
p130 equ b'00000110'
p131 equ b'00000101'
p140 equ b'00001100'
p141 equ b'00001010'
p150 equ b'00011000'
p151 equ b'00010100'
p160 equ b'00110000'
p161 equ b'00101000'
p170 equ b'01100000'
p171 equ b'01010000'
p180 equ b'11000000'
p181 equ b'10100000'
p190 equ b'10000000'
p191 equ b'01000000'
p1a0 equ b'00000000'
p1a1 equ b'10000000'
;****** Pattern 2 ******
p200 equ b'00000000'
p201 equ b'00000000'
p210 equ b'10000000'
p211 equ b'10000000'
p220 equ b'11000000'
p221 equ b'01000000'
p230 equ b'01100000'
p231 equ b'10100000'
p240 equ b'00110000'
p241 equ b'01010000'
p250 equ b'00011000'
p251 equ b'00101000'
p260 equ b'00001100'
p261 equ b'00010100'
p270 equ b'00000110'
p271 equ b'00001010'
p280 equ b'00000011'
p281 equ b'00000101'
p290 equ b'00000001'
p291 equ b'00000010'
p2a0 equ b'00000000'
p2a1 equ b'00000001'
;**************** Program Start ***********************
org 0 ;Reset Vector
goto init
org 4 ;Interrupt Vector
goto int
;****************** Initial Process *******************
init
;*** Set Port mode
bsf status,rp0 ;Change to Bank1
movlw b'00000111' ;RA2-0:IN mode
movwf trisa ;Set TRISA reg
movlw b'00000000' ;RB7-0:OUT mode
movwf trisb ;Set TRISB reg
;*** Set Option reg
movlw b'10000111' ;RBPU=OFF,PSA=0,PS=1:256
movwf option_reg ;Set OPTION_REG
bcf status,rp0 ;Change to Bank0
;*** Set work area
clrf led_data0 ;Clear LED data0
clrf led_data1 ;Clear LED data1
movlw led1 ;Read 01 pattern
movwf led01 ;Set 01 pattern
movlw led2 ;Read 10 pattern
movwf led10 ;Set 10 pattern
movlw led3 ;Read 11 pattern
movwf led11 ;Set 11 pattern
clrf port_work ;Clear LED data save area
movlw speed ;Read speed data
addlw d'1' ;+1 addition
movwf counter ;Set counter
movlw d'1' ;Set pattern data
movwf ptn_save ;Set pattern 0
clrf ptn_counter ;Clear pattern counter
;*** Set TMR0 reg
movlw d'61' ;256-50ms/0.256ms = 61
movwf tmr0 ;Set 50msec to TMR0
movlw b'10100000' ;GIE=1,TOIE=1
movwf intcon ;Interruption enable
;**************** LED control Process ******************
loop
movlw d'4' ;Set loop counter data
movwf loop_cnt ;Set loop counter
loop1
movlw d'1' ;Set check data
subwf loop_cnt,w ;Check exec times
btfss status,z ;Counter = 1 ?
goto next2 ;No.
goto process4 ;Jump to Process4
next2
movlw d'2' ;Set check data
subwf loop_cnt,w ;Check exec times
btfss status,z ;Counter = 2 ?
goto next3 ;No.
goto process3 ;Jump to Process3
next3
movlw d'3' ;Set check data
subwf loop_cnt,w ;Check exec times
btfss status,z ;Counter = 3 ?
goto next4 ;No.
goto process2 ;Jump to Process2
next4
movlw d'4' ;Set check data
subwf loop_cnt,w ;Check exec times
btfss status,z ;Counter = 4 ?
goto loop ;No. illegal
goto process1 ;Jump to Process1
led_cont
movfw port_work ;Read PORT WORK data
movwf portb ;Set PORTB
next
decfsz loop_cnt,f ;Count down
goto loop1 ;Next Process
goto loop ;Next Period
process1
;****************** bit0 for process1 *******************
btfss led_data0,0 ;1x ?
goto p10_0x ;No.
btfss led_data1,0 ;11 ?
goto p10_10 ;Jump to 10 process
goto p10_11 ;Jump to 11 process
p10_0x
btfsc led_data1,0 ;01 ?
goto p10_01 ;Jump to 01 process
p10_00
goto p10_set ;LED off
p10_01
btfss led01,0 ;Data = 1 ?
goto p10_clear ;No.
goto p10_set ;Yes.
p10_10
btfss led10,0 ;Data = 1 ?
goto p10_clear ;No.
goto p10_set ;Yes.
p10_11
btfss led11,0 ;Data = 1 ?
goto p10_clear ;No.
p10_set
bsf port_work,0 ;Set bit0
goto bit1_process1
p10_clear
bcf port_work,0 ;Clear bit0
bit1_process1
;****************** bit1 for process1 *******************
btfss led_data0,1 ;1x ?
goto p11_0x ;No.
btfss led_data1,1 ;11 ?
goto p11_10 ;Jump to 10 process
goto p11_11 ;Jump to 11 process
p11_0x
btfsc led_data1,1 ;01 ?
goto p11_01 ;Jump to 01 process
p11_00
goto p11_set ;LED off
p11_01
btfss led01,0 ;Data = 1 ?
goto p11_clear ;No.
goto p11_set ;Yes.
p11_10
btfss led10,0 ;Data = 1 ?
goto p11_clear ;No.
goto p11_set ;Yes.
p11_11
btfss led11,0 ;Data = 1 ?
goto p11_clear ;No.
p11_set
bsf port_work,1 ;Set bit1
goto bit2_process1
p11_clear
bcf port_work,1 ;Clear bit1
bit2_process1
;****************** bit2 for process1 *******************
btfss led_data0,2 ;1x ?
goto p12_0x ;No.
btfss led_data1,2 ;11 ?
goto p12_10 ;Jump to 10 process
goto p12_11 ;Jump to 11 process
p12_0x
btfsc led_data1,2 ;01 ?
goto p12_01 ;Jump to 01 process
p12_00
goto p12_set ;LED off
p12_01
btfss led01,0 ;Data = 1 ?
goto p12_clear ;No.
goto p12_set ;Yes.
p12_10
btfss led10,0 ;Data = 1 ?
goto p12_clear ;No.
goto p12_set ;Yes.
p12_11
btfss led11,0 ;Data = 1 ?
goto p12_clear ;No.
p12_set
bsf port_work,2 ;Set bit2
goto bit3_process1
p12_clear
bcf port_work,2 ;Clear bit2
bit3_process1
;****************** bit3 for process1 *******************
btfss led_data0,3 ;1x ?
goto p13_0x ;No.
btfss led_data1,3 ;11 ?
goto p13_10 ;Jump to 10 process
goto p13_11 ;Jump to 11 process
p13_0x
btfsc led_data1,3 ;01 ?
goto p13_01 ;Jump to 01 process
p13_00
goto p13_set ;LED off
p13_01
btfss led01,0 ;Data = 1 ?
goto p13_clear ;No.
goto p13_set ;Yes.
p13_10
btfss led10,0 ;Data = 1 ?
goto p13_clear ;No.
goto p13_set ;Yes.
p13_11
btfss led11,0 ;Data = 1 ?
goto p13_clear ;No.
p13_set
bsf port_work,3 ;Set bit3
goto bit4_process1
p13_clear
bcf port_work,3 ;Clear bit3
bit4_process1
;****************** bit4 for process1 *******************
btfss led_data0,4 ;1x ?
goto p14_0x ;No.
btfss led_data1,4 ;11 ?
goto p14_10 ;Jump to 10 process
goto p14_11 ;Jump to 11 process
p14_0x
btfsc led_data1,4 ;01 ?
goto p14_01 ;Jump to 01 process
p14_00
goto p14_set ;LED off
p14_01
btfss led01,0 ;Data = 1 ?
goto p14_clear ;No.
goto p14_set ;Yes.
p14_10
btfss led10,0 ;Data = 1 ?
goto p14_clear ;No.
goto p14_set ;Yes.
p14_11
btfss led11,0 ;Data = 1 ?
goto p14_clear ;No.
p14_set
bsf port_work,4 ;Set bit4
goto bit5_process1
p14_clear
bcf port_work,4 ;Clear bit4
bit5_process1
;****************** bit5 for process1 *******************
btfss led_data0,5 ;1x ?
goto p15_0x ;No.
btfss led_data1,5 ;11 ?
goto p15_10 ;Jump to 10 process
goto p15_11 ;Jump to 11 process
p15_0x
btfsc led_data1,5 ;01 ?
goto p15_01 ;Jump to 01 process
p15_00
goto p15_set ;LED off
p15_01
btfss led01,0 ;Data = 1 ?
goto p15_clear ;No.
goto p15_set ;Yes.
p15_10
btfss led10,0 ;Data = 1 ?
goto p15_clear ;No.
goto p15_set ;Yes.
p15_11
btfss led11,0 ;Data = 1 ?
goto p15_clear ;No.
p15_set
bsf port_work,5 ;Set bit5
goto bit6_process1
p15_clear
bcf port_work,5 ;Clear bit5
bit6_process1
;****************** bit6 for process1 *******************
btfss led_data0,6 ;1x ?
goto p16_0x ;No.
btfss led_data1,6 ;11 ?
goto p16_10 ;Jump to 10 process
goto p16_11 ;Jump to 11 process
p16_0x
btfsc led_data1,6 ;01 ?
goto p16_01 ;Jump to 01 process
p16_00
goto p16_set ;LED off
p16_01
btfss led01,0 ;Data = 1 ?
goto p16_clear ;No.
goto p16_set ;Yes.
p16_10
btfss led10,0 ;Data = 1 ?
goto p16_clear ;No.
goto p16_set ;Yes.
p16_11
btfss led11,0 ;Data = 1 ?
goto p16_clear ;No.
p16_set
bsf port_work,6 ;Set bit6
goto bit7_process1
p16_clear
bcf port_work,6 ;Clear bit6
bit7_process1
;****************** bit7 for process1 *******************
btfss led_data0,7 ;1x ?
goto p17_0x ;No.
btfss led_data1,7 ;11 ?
goto p17_10 ;Jump to 10 process
goto p17_11 ;Jump to 11 process
p17_0x
btfsc led_data1,7 ;01 ?
goto p17_01 ;Jump to 01 process
p17_00
goto p7_set ;LED off
p17_01
btfss led01,0 ;Data = 1 ?
goto p7_clear ;No.
goto p7_set ;Yes.
p17_10
btfss led10,0 ;Data = 1 ?
goto p7_clear ;No.
goto p7_set ;Yes.
p17_11
btfss led11,0 ;Data = 1 ?
goto p7_clear ;No.
goto p7_set ;Yes.
process2
;****************** bit0 for process2 *******************
btfss led_data0,0 ;1x ?
goto p20_0x ;No.
btfss led_data1,0 ;11 ?
goto p20_10 ;Jump to 10 process
goto p20_11 ;Jump to 11 process
p20_0x
btfsc led_data1,0 ;01 ?
goto p20_01 ;Jump to 01 process
p20_00
goto p20_set ;LED off
p20_01
btfss led01,1 ;Data = 1 ?
goto p20_clear ;No.
goto p20_set ;Yes.
p20_10
btfss led10,1 ;Data = 1 ?
goto p20_clear ;No.
goto p20_set ;Yes.
p20_11
btfss led11,1 ;Data = 1 ?
goto p20_clear ;No.
p20_set
bsf port_work,0 ;Set bit0
goto bit1_process2
p20_clear
bcf port_work,0 ;Clear bit0
bit1_process2
;****************** bit1 for process2 *******************
btfss led_data0,1 ;1x ?
goto p21_0x ;No.
btfss led_data1,1 ;11 ?
goto p21_10 ;Jump to 10 process
goto p21_11 ;Jump to 11 process
p21_0x
btfsc led_data1,1 ;01 ?
goto p21_01 ;Jump to 01 process
p21_00
goto p21_set ;LED off
p21_01
btfss led01,1 ;Data = 1 ?
goto p21_clear ;No.
goto p21_set ;Yes.
p21_10
btfss led10,1 ;Data = 1 ?
goto p21_clear ;No.
goto p21_set ;Yes.
p21_11
btfss led11,1 ;Data = 1 ?
goto p21_clear ;No.
p21_set
bsf port_work,1 ;Set bit1
goto bit2_process2
p21_clear
bcf port_work,1 ;Clear bit1
bit2_process2
;****************** bit2 for process2 *******************
btfss led_data0,2 ;1x ?
goto p22_0x ;No.
btfss led_data1,2 ;11 ?
goto p22_10 ;Jump to 10 process
goto p22_11 ;Jump to 11 process
p22_0x
btfsc led_data1,2 ;01 ?
goto p22_01 ;Jump to 01 process
p22_00
goto p22_set ;LED off
p22_01
btfss led01,1 ;Data = 1 ?
goto p22_clear ;No.
goto p22_set ;Yes.
p22_10
btfss led10,1 ;Data = 1 ?
goto p22_clear ;No.
goto p22_set ;Yes.
p22_11
btfss led11,1 ;Data = 1 ?
goto p22_clear ;No.
p22_set
bsf port_work,2 ;Set bit2
goto bit3_process2
p22_clear
bcf port_work,2 ;Clear bit2
bit3_process2
;****************** bit3 for process2 *******************
btfss led_data0,3 ;1x ?
goto p23_0x ;No.
btfss led_data1,3 ;11 ?
goto p23_10 ;Jump to 10 process
goto p23_11 ;Jump to 11 process
p23_0x
btfsc led_data1,3 ;01 ?
goto p23_01 ;Jump to 01 process
p23_00
goto p23_set ;LED off
p23_01
btfss led01,1 ;Data = 1 ?
goto p23_clear ;No.
goto p23_set ;Yes.
p23_10
btfss led10,1 ;Data = 1 ?
goto p23_clear ;No.
goto p23_set ;Yes.
p23_11
btfss led11,1 ;Data = 1 ?
goto p23_clear ;No.
p23_set
bsf port_work,3 ;Set bit3
goto bit4_process2
p23_clear
bcf port_work,3 ;Clear bit3
bit4_process2
;****************** bit4 for process2 *******************
btfss led_data0,4 ;1x ?
goto p24_0x ;No.
btfss led_data1,4 ;11 ?
goto p24_10 ;Jump to 10 process
goto p24_11 ;Jump to 11 process
p24_0x
btfsc led_data1,4 ;01 ?
goto p24_01 ;Jump to 01 process
p24_00
goto p24_set ;LED off
p24_01
btfss led01,1 ;Data = 1 ?
goto p24_clear ;No.
goto p24_set ;Yes.
p24_10
btfss led10,1 ;Data = 1 ?
goto p24_clear ;No.
goto p24_set ;Yes.
p24_11
btfss led11,1 ;Data = 1 ?
goto p24_clear ;No.
p24_set
bsf port_work,4 ;Set bit4
goto bit5_process2
p24_clear
bcf port_work,4 ;Clear bit4
bit5_process2
;****************** bit5 for process2 *******************
btfss led_data0,5 ;1x ?
goto p25_0x ;No.
btfss led_data1,5 ;11 ?
goto p25_10 ;Jump to 10 process
goto p25_11 ;Jump to 11 process
p25_0x
btfsc led_data1,5 ;01 ?
goto p25_01 ;Jump to 01 process
p25_00
goto p25_set ;LED off
p25_01
btfss led01,1 ;Data = 1 ?
goto p25_clear ;No.
goto p25_set ;Yes.
p25_10
btfss led10,1 ;Data = 1 ?
goto p25_clear ;No.
goto p25_set ;Yes.
p25_11
btfss led11,1 ;Data = 1 ?
goto p25_clear ;No.
p25_set
bsf port_work,5 ;Set bit5
goto bit6_process2
p25_clear
bcf port_work,5 ;Clear bit5
bit6_process2
;****************** bit6 for process2 *******************
btfss led_data0,6 ;1x ?
goto p26_0x ;No.
btfss led_data1,6 ;11 ?
goto p26_10 ;Jump to 10 process
goto p26_11 ;Jump to 11 process
p26_0x
btfsc led_data1,6 ;01 ?
goto p26_01 ;Jump to 01 process
p26_00
goto p26_set ;LED off
p26_01
btfss led01,1 ;Data = 1 ?
goto p26_clear ;No.
goto p26_set ;Yes.
p26_10
btfss led10,1 ;Data = 1 ?
goto p26_clear ;No.
goto p26_set ;Yes.
p26_11
btfss led11,1 ;Data = 1 ?
goto p26_clear ;No.
p26_set
bsf port_work,6 ;Set bit6
goto bit7_process2
p26_clear
bcf port_work,6 ;Clear bit6
bit7_process2
;****************** bit7 for process2 *******************
btfss led_data0,7 ;1x ?
goto p27_0x ;No.
btfss led_data1,7 ;11 ?
goto p27_10 ;Jump to 10 process
goto p27_11 ;Jump to 11 process
p27_0x
btfsc led_data1,7 ;01 ?
goto p27_01 ;Jump to 01 process
p27_00
goto p7_set ;LED off
p27_01
btfss led01,1 ;Data = 1 ?
goto p7_clear ;No.
goto p7_set ;Yes.
p27_10
btfss led10,1 ;Data = 1 ?
goto p7_clear ;No.
goto p7_set ;Yes.
p27_11
btfss led11,1 ;Data = 1 ?
goto p7_clear ;No.
goto p7_set ;Yes.
process3
;****************** bit0 for process3 *******************
btfss led_data0,0 ;1x ?
goto p30_0x ;No.
btfss led_data1,0 ;11 ?
goto p30_10 ;Jump to 10 process
goto p30_11 ;Jump to 11 process
p30_0x
btfsc led_data1,0 ;01 ?
goto p30_01 ;Jump to 01 process
p30_00
goto p30_set ;LED off
p30_01
btfss led01,2 ;Data = 1 ?
goto p30_clear ;No.
goto p30_set ;Yes.
p30_10
btfss led10,2 ;Data = 1 ?
goto p30_clear ;No.
goto p30_set ;Yes.
p30_11
btfss led11,2 ;Data = 1 ?
goto p30_clear ;No.
p30_set
bsf port_work,0 ;Set bit0
goto bit1_process3
p30_clear
bcf port_work,0 ;Clear bit0
bit1_process3
;****************** bit1 for process3 *******************
btfss led_data0,1 ;1x ?
goto p31_0x ;No.
btfss led_data1,1 ;11 ?
goto p31_10 ;Jump to 10 process
goto p31_11 ;Jump to 11 process
p31_0x
btfsc led_data1,1 ;01 ?
goto p31_01 ;Jump to 01 process
p31_00
goto p31_set ;LED off
p31_01
btfss led01,2 ;Data = 1 ?
goto p31_clear ;No.
goto p31_set ;Yes.
p31_10
btfss led10,2 ;Data = 1 ?
goto p31_clear ;No.
goto p31_set ;Yes.
p31_11
btfss led11,2 ;Data = 1 ?
goto p31_clear ;No.
p31_set
bsf port_work,1 ;Set bit1
goto bit2_process3
p31_clear
bcf port_work,1 ;Clear bit1
bit2_process3
;****************** bit2 for process3 *******************
btfss led_data0,2 ;1x ?
goto p32_0x ;No.
btfss led_data1,2 ;11 ?
goto p32_10 ;Jump to 10 process
goto p32_11 ;Jump to 11 process
p32_0x
btfsc led_data1,2 ;01 ?
goto p32_01 ;Jump to 01 process
p32_00
goto p32_set ;LED off
p32_01
btfss led01,2 ;Data = 1 ?
goto p32_clear ;No.
goto p32_set ;Yes.
p32_10
btfss led10,2 ;Data = 1 ?
goto p32_clear ;No.
goto p32_set ;Yes.
p32_11
btfss led11,2 ;Data = 1 ?
goto p32_clear ;No.
p32_set
bsf port_work,2 ;Set bit2
goto bit3_process3
p32_clear
bcf port_work,2 ;Clear bit2
bit3_process3
;****************** bit3 for process3 *******************
btfss led_data0,3 ;1x ?
goto p33_0x ;No.
btfss led_data1,3 ;11 ?
goto p33_10 ;Jump to 10 process
goto p33_11 ;Jump to 11 process
p33_0x
btfsc led_data1,3 ;01 ?
goto p33_01 ;Jump to 01 process
p33_00
goto p33_set ;LED off
p33_01
btfss led01,2 ;Data = 1 ?
goto p33_clear ;No.
goto p33_set ;Yes.
p33_10
btfss led10,2 ;Data = 1 ?
goto p33_clear ;No.
goto p33_set ;Yes.
p33_11
btfss led11,2 ;Data = 1 ?
goto p33_clear ;No.
p33_set
bsf port_work,3 ;Set bit3
goto bit4_process3
p33_clear
bcf port_work,3 ;Clear bit3
bit4_process3
;****************** bit4 for process3 *******************
btfss led_data0,4 ;1x ?
goto p34_0x ;No.
btfss led_data1,4 ;11 ?
goto p34_10 ;Jump to 10 process
goto p34_11 ;Jump to 11 process
p34_0x
btfsc led_data1,4 ;01 ?
goto p34_01 ;Jump to 01 process
p34_00
goto p34_set ;LED off
p34_01
btfss led01,2 ;Data = 1 ?
goto p34_clear ;No.
goto p34_set ;Yes.
p34_10
btfss led10,2 ;Data = 1 ?
goto p34_clear ;No.
goto p34_set ;Yes.
p34_11
btfss led11,2 ;Data = 1 ?
goto p34_clear ;No.
p34_set
bsf port_work,4 ;Set bit4
goto bit5_process3
p34_clear
bcf port_work,4 ;Clear bit4
bit5_process3
;****************** bit5 for process3 *******************
btfss led_data0,5 ;1x ?
goto p35_0x ;No.
btfss led_data1,5 ;11 ?
goto p35_10 ;Jump to 10 process
goto p35_11 ;Jump to 11 process
p35_0x
btfsc led_data1,5 ;01 ?
goto p35_01 ;Jump to 01 process
p35_00
goto p35_set ;LED off
p35_01
btfss led01,2 ;Data = 1 ?
goto p35_clear ;No.
goto p35_set ;Yes.
p35_10
btfss led10,2 ;Data = 1 ?
goto p35_clear ;No.
goto p35_set ;Yes.
p35_11
btfss led11,2 ;Data = 1 ?
goto p35_clear ;No.
p35_set
bsf port_work,5 ;Set bit5
goto bit6_process3
p35_clear
bcf port_work,5 ;Clear bit5
bit6_process3
;****************** bit6 for process3 *******************
btfss led_data0,6 ;1x ?
goto p36_0x ;No.
btfss led_data1,6 ;11 ?
goto p36_10 ;Jump to 10 process
goto p36_11 ;Jump to 11 process
p36_0x
btfsc led_data1,6 ;01 ?
goto p36_01 ;Jump to 01 process
p36_00
goto p36_set ;LED off
p36_01
btfss led01,2 ;Data = 1 ?
goto p36_clear ;No.
goto p36_set ;Yes.
p36_10
btfss led10,2 ;Data = 1 ?
goto p36_clear ;No.
goto p36_set ;Yes.
p36_11
btfss led11,2 ;Data = 1 ?
goto p36_clear ;No.
p36_set
bsf port_work,6 ;Set bit6
goto bit7_process3
p36_clear
bcf port_work,6 ;Clear bit6
bit7_process3
;****************** bit7 for process3 *******************
btfss led_data0,7 ;1x ?
goto p37_0x ;No.
btfss led_data1,7 ;11 ?
goto p37_10 ;Jump to 10 process
goto p37_11 ;Jump to 11 process
p37_0x
btfsc led_data1,7 ;01 ?
goto p37_01 ;Jump to 01 process
p37_00
goto p7_set ;LED off
p37_01
btfss led01,2 ;Data = 1 ?
goto p7_clear ;No.
goto p7_set ;Yes.
p37_10
btfss led10,2 ;Data = 1 ?
goto p7_clear ;No.
goto p7_set ;Yes.
p37_11
btfss led11,2 ;Data = 1 ?
goto p7_clear ;No.
goto p7_set ;Yes.
process4
;****************** bit0 for process4 *******************
btfss led_data0,0 ;1x ?
goto p40_0x ;No.
btfss led_data1,0 ;11 ?
goto p40_10 ;Jump to 10 process
goto p40_11 ;Jump to 11 process
p40_0x
btfsc led_data1,0 ;01 ?
goto p40_01 ;Jump to 01 process
p40_00
goto p40_set ;LED off
p40_01
btfss led01,3 ;Data = 1 ?
goto p40_clear ;No.
goto p40_set ;Yes.
p40_10
btfss led10,3 ;Data = 1 ?
goto p40_clear ;No.
goto p40_set ;Yes.
p40_11
btfss led11,3 ;Data = 1 ?
goto p40_clear ;No.
p40_set
bsf port_work,0 ;Set bit0
goto bit1_process4
p40_clear
bcf port_work,0 ;Clear bit0
bit1_process4
;****************** bit1 for process4 *******************
btfss led_data0,1 ;1x ?
goto p41_0x ;No.
btfss led_data1,1 ;11 ?
goto p41_10 ;Jump to 10 process
goto p41_11 ;Jump to 11 process
p41_0x
btfsc led_data1,1 ;01 ?
goto p41_01 ;Jump to 01 process
p41_00
goto p41_set ;LED off
p41_01
btfss led01,3 ;Data = 1 ?
goto p41_clear ;No.
goto p41_set ;Yes.
p41_10
btfss led10,3 ;Data = 1 ?
goto p41_clear ;No.
goto p41_set ;Yes.
p41_11
btfss led11,3 ;Data = 1 ?
goto p41_clear ;No.
p41_set
bsf port_work,1 ;Set bit1
goto bit2_process4
p41_clear
bcf port_work,1 ;Clear bit1
bit2_process4
;****************** bit2 for process4 *******************
btfss led_data0,2 ;1x ?
goto p42_0x ;No.
btfss led_data1,2 ;11 ?
goto p42_10 ;Jump to 10 process
goto p42_11 ;Jump to 11 process
p42_0x
btfsc led_data1,2 ;01 ?
goto p42_01 ;Jump to 01 process
p42_00
goto p42_set ;LED off
p42_01
btfss led01,3 ;Data = 1 ?
goto p42_clear ;No.
goto p42_set ;Yes.
p42_10
btfss led10,3 ;Data = 1 ?
goto p42_clear ;No.
goto p42_set ;Yes.
p42_11
btfss led11,3 ;Data = 1 ?
goto p42_clear ;No.
p42_set
bsf port_work,2 ;Set bit2
goto bit3_process4
p42_clear
bcf port_work,2 ;Clear bit2
bit3_process4
;****************** bit3 for process4 *******************
btfss led_data0,3 ;1x ?
goto p43_0x ;No.
btfss led_data1,3 ;11 ?
goto p43_10 ;Jump to 10 process
goto p43_11 ;Jump to 11 process
p43_0x
btfsc led_data1,3 ;01 ?
goto p43_01 ;Jump to 01 process
p43_00
goto p43_set ;LED off
p43_01
btfss led01,3 ;Data = 1 ?
goto p43_clear ;No.
goto p43_set ;Yes.
p43_10
btfss led10,3 ;Data = 1 ?
goto p43_clear ;No.
goto p43_set ;Yes.
p43_11
btfss led11,3 ;Data = 1 ?
goto p43_clear ;No.
p43_set
bsf port_work,3 ;Set bit3
goto bit4_process4
p43_clear
bcf port_work,3 ;Clear bit3
bit4_process4
;****************** bit4 for process4 *******************
btfss led_data0,4 ;1x ?
goto p44_0x ;No.
btfss led_data1,4 ;11 ?
goto p44_10 ;Jump to 10 process
goto p44_11 ;Jump to 11 process
p44_0x
btfsc led_data1,4 ;01 ?
goto p44_01 ;Jump to 01 process
p44_00
goto p44_set ;LED off
p44_01
btfss led01,3 ;Data = 1 ?
goto p44_clear ;No.
goto p44_set ;Yes.
p44_10
btfss led10,3 ;Data = 1 ?
goto p44_clear ;No.
goto p44_set ;Yes.
p44_11
btfss led11,3 ;Data = 1 ?
goto p44_clear ;No.
p44_set
bsf port_work,4 ;Set bit4
goto bit5_process4
p44_clear
bcf port_work,4 ;Clear bit4
bit5_process4
;****************** bit5 for process4 *******************
btfss led_data0,5 ;1x ?
goto p45_0x ;No.
btfss led_data1,5 ;11 ?
goto p45_10 ;Jump to 10 process
goto p45_11 ;Jump to 11 process
p45_0x
btfsc led_data1,5 ;01 ?
goto p45_01 ;Jump to 01 process
p45_00
goto p45_set ;LED off
p45_01
btfss led01,3 ;Data = 1 ?
goto p45_clear ;No.
goto p45_set ;Yes.
p45_10
btfss led10,3 ;Data = 1 ?
goto p45_clear ;No.
goto p45_set ;Yes.
p45_11
btfss led11,3 ;Data = 1 ?
goto p45_clear ;No.
p45_set
bsf port_work,5 ;Set bit5
goto bit6_process4
p45_clear
bcf port_work,5 ;Clear bit5
bit6_process4
;****************** bit6 for process4 *******************
btfss led_data0,6 ;1x ?
goto p46_0x ;No.
btfss led_data1,6 ;11 ?
goto p46_10 ;Jump to 10 process
goto p46_11 ;Jump to 11 process
p46_0x
btfsc led_data1,6 ;01 ?
goto p46_01 ;Jump to 01 process
p46_00
goto p46_set ;LED off
p46_01
btfss led01,3 ;Data = 1 ?
goto p46_clear ;No.
goto p46_set ;Yes.
p46_10
btfss led10,3 ;Data = 1 ?
goto p46_clear ;No.
goto p46_set ;Yes.
p46_11
btfss led11,3 ;Data = 1 ?
goto p46_clear ;No.
p46_set
bsf port_work,6 ;Set bit6
goto bit7_process4
p46_clear
bcf port_work,6 ;Clear bit6
bit7_process4
;****************** bit7 for process4 *******************
btfss led_data0,7 ;1x ?
goto p47_0x ;No.
btfss led_data1,7 ;11 ?
goto p47_10 ;Jump to 10 process
goto p47_11 ;Jump to 11 process
p47_0x
btfsc led_data1,7 ;01 ?
goto p47_01 ;Jump to 01 process
p47_00
goto p7_set ;LED off
p47_01
btfss led01,3 ;Data = 1 ?
goto p7_clear ;No.
goto p7_set ;Yes.
p47_10
btfss led10,3 ;Data = 1 ?
goto p7_clear ;No.
goto p7_set ;Yes.
p47_11
btfss led11,3 ;Data = 1 ?
goto p7_clear ;No.
p7_set
bsf port_work,7 ;Set bit7
goto led_cont
p7_clear
bcf port_work,7 ;Clear bit7
goto led_cont
int
;********** Interruption process beginning *************
movwf w_save ;Save W register
movfw status ;Read STATUS reg
movwf s_save ;Save STATUS reg
btfsc intcon,t0if ;Time out interruption ?
goto timer_int ;Jump to Time-out
goto init ;Reset(Illegal interrupt)
int_end
;************ END of interruption process **************
movfw s_save ;Read saved STATUS reg
movwf status ;Recover STATUS reg
swapf w_save,f ;Read saved W register
swapf w_save,w ;Recover W register
retfie
timer_int
;***** Timer interruption process (50ms interval) ******
bcf intcon,t0if ;Clear timer int flag
movlw d'61' ;Set timer value
movwf tmr0 ;TMR0 = 50ms
;****************** Key Scan Process *******************
btfsc porta,ra0 ;RA0 ON(Low lebel) ?
goto key0 ;No.
movlw d'2' ;Set pattern 1 data
goto key2 ;Pattern exec
key0
btfsc porta,ra1 ;RA1 ON ?
goto key1 ;No.
movlw d'1' ;Set pattern 0 data
goto key2 ;Pattern exec
key1
btfsc porta,ra2 ;RA2 ON ?
goto key3 ;No.
movlw d'3' ;Set pattern 2 data
key2
movwf ptn_save ;Save pattern
key3
decfsz counter,f ;Count out ?
goto int_end ;Next Period
;***************** Pattern Process *********************
movlw speed ;Read speed data
addlw d'1' ;+1 addition
movwf counter ;Set counter
movlw d'1' ;Set pattern number
subwf ptn_save,w ;Check pattern number
btfsc status,z ;Pattern 0 ?
goto ptn0 ;Jump to pattern 0
movlw d'2' ;Set pattern number
subwf ptn_save,w ;Check pattern number
btfsc status,z ;Pattern 1 ?
goto ptn1 ;Jump to pattern 1
movlw d'3' ;Set pattern number
subwf ptn_save,w ;Check pattern number
btfsc status,z ;Pattern 2 ?
goto ptn2 ;Jump to pattern 2
ptn0
;********************* Pattren 0 ***********************
movlw d'1' ;Set pattern number
subwf ptn_save,w ;Check pattern number
btfss status,z ;Same ?
ptn0_clear
clrf ptn_counter ;Clear pattern counter
ptn0_head
movlw d'1' ;Set pattern number
movwf ptn_save ;Save pattern number
movfw ptn_counter ;Read pattern counter
btfsc status,z ;Counter = 0 ?
goto ptn0_0 ;Yes
movlw d'1' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 1 ?
goto ptn0_1 ;Yes
movlw d'2' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 2 ?
goto ptn0_2 ;Yes
movlw d'3' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 3 ?
goto ptn0_3 ;Yes
movlw d'4' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 4 ?
goto ptn0_4 ;Yes
movlw d'5' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 5 ?
goto ptn0_5 ;Yes
movlw d'6' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 6 ?
goto ptn0_6 ;Yes
movlw d'7' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 7 ?
goto ptn0_7 ;Yes
movlw d'8' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 8 ?
goto ptn0_8 ;Yes
movlw d'9' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 9 ?
goto ptn0_9 ;Yes
movlw d'10' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 10 ?
goto ptn0_10 ;Yes
goto ptn0_clear ;Repeat
ptn0_0
clrf led_data0
clrf led_data1
goto p_countup ;Jump to count up
ptn0_1
movlw p010 ;Set 1st upper data
movwf led_data0
movlw p011 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn0_2
movlw p020 ;Set 1st upper data
movwf led_data0
movlw p021 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn0_3
movlw p030 ;Set 1st upper data
movwf led_data0
movlw p031 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn0_4
movlw p040 ;Set 1st upper data
movwf led_data0
movlw p041 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn0_5
movlw p050 ;Set 1st upper data
movwf led_data0
movlw p051 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn0_6
movlw p060 ;Set 1st upper data
movwf led_data0
movlw p061 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn0_7
movlw p070 ;Set 1st upper data
movwf led_data0
movlw p071 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn0_8
movlw p080 ;Set 1st upper data
movwf led_data0
movlw p081 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn0_9
movlw p090 ;Set 1st upper data
movwf led_data0
movlw p091 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn0_10
movlw p0a0 ;Set 1st upper data
movwf led_data0
movlw p0a1 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn1
;********************* Pattren 1 ***********************
movlw d'2' ;Set pattern number
subwf ptn_save,w ;Check pattern number
btfss status,z ;Same ?
ptn1_clear
clrf ptn_counter ;Clear pattern counter
ptn1_head
movlw d'2' ;Set pattern number
movwf ptn_save ;Save pattern number
movfw ptn_counter ;Read pattern counter
btfsc status,z ;Counter = 0 ?
goto ptn1_0 ;Yes
movlw d'1' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 1 ?
goto ptn1_1 ;Yes
movlw d'2' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 2 ?
goto ptn1_2 ;Yes
movlw d'3' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 3 ?
goto ptn1_3 ;Yes
movlw d'4' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 4 ?
goto ptn1_4 ;Yes
movlw d'5' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 5 ?
goto ptn1_5 ;Yes
movlw d'6' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 6 ?
goto ptn1_6 ;Yes
movlw d'7' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 7 ?
goto ptn1_7 ;Yes
movlw d'8' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 8 ?
goto ptn1_8 ;Yes
movlw d'9' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 9 ?
goto ptn1_9 ;Yes
movlw d'10' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 10 ?
goto ptn1_10 ;Yes
goto ptn1_clear ;Repeat
ptn1_0
clrf led_data0
clrf led_data1
goto p_countup ;Jump to count up
ptn1_1
movlw p110 ;Set 1st upper data
movwf led_data0
movlw p111 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn1_2
movlw p120 ;Set 1st upper data
movwf led_data0
movlw p121 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn1_3
movlw p130 ;Set 1st upper data
movwf led_data0
movlw p131 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn1_4
movlw p140 ;Set 1st upper data
movwf led_data0
movlw p141 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn1_5
movlw p150 ;Set 1st upper data
movwf led_data0
movlw p151 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn1_6
movlw p160 ;Set 1st upper data
movwf led_data0
movlw p161 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn1_7
movlw p170 ;Set 1st upper data
movwf led_data0
movlw p171 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn1_8
movlw p180 ;Set 1st upper data
movwf led_data0
movlw p181 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn1_9
movlw p190 ;Set 1st upper data
movwf led_data0
movlw p191 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn1_10
movlw p1a0 ;Set 1st upper data
movwf led_data0
movlw p1a1 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn2
;********************* Pattren 2 ***********************
movlw d'3' ;Set pattern number
subwf ptn_save,w ;Check pattern number
btfss status,z ;Same ?
ptn2_clear
clrf ptn_counter ;Clear pattern counter
ptn2_head
movlw d'3' ;Set pattern number
movwf ptn_save ;Save pattern number
movfw ptn_counter ;Read pattern counter
btfsc status,z ;Counter = 0 ?
goto ptn2_0 ;Yes
movlw d'1' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 1 ?
goto ptn2_1 ;Yes
movlw d'2' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 2 ?
goto ptn2_2 ;Yes
movlw d'3' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 3 ?
goto ptn2_3 ;Yes
movlw d'4' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 4 ?
goto ptn2_4 ;Yes
movlw d'5' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 5 ?
goto ptn2_5 ;Yes
movlw d'6' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 6 ?
goto ptn2_6 ;Yes
movlw d'7' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 7 ?
goto ptn2_7 ;Yes
movlw d'8' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 8 ?
goto ptn2_8 ;Yes
movlw d'9' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 9 ?
goto ptn2_9 ;Yes
movlw d'10' ;Set check data
subwf ptn_counter,w ;Check counter
btfsc status,z ;Counter = 10 ?
goto ptn2_10 ;Yes
goto ptn2_clear ;Repeat
ptn2_0
clrf led_data0
clrf led_data1
goto p_countup ;Jump to count up
ptn2_1
movlw p210 ;Set 1st upper data
movwf led_data0
movlw p211 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn2_2
movlw p220 ;Set 1st upper data
movwf led_data0
movlw p221 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn2_3
movlw p230 ;Set 1st upper data
movwf led_data0
movlw p231 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn2_4
movlw p240 ;Set 1st upper data
movwf led_data0
movlw p241 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn2_5
movlw p250 ;Set 1st upper data
movwf led_data0
movlw p251 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn2_6
movlw p260 ;Set 1st upper data
movwf led_data0
movlw p261 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn2_7
movlw p270 ;Set 1st upper data
movwf led_data0
movlw p271 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn2_8
movlw p280 ;Set 1st upper data
movwf led_data0
movlw p281 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn2_9
movlw p290 ;Set 1st upper data
movwf led_data0
movlw p291 ;Set 1st lower data
movwf led_data1
goto p_countup ;Jump to count up
ptn2_10
movlw p2a0 ;Set 1st upper data
movwf led_data0
movlw p2a1 ;Set 1st lower data
movwf led_data1
p_countup
incf ptn_counter,f ;pattern counter count up
goto int_end ;Next Period
;********************************************************
; END of LED flash control 2 process
;********************************************************
end
|
ICのクロック発振のための発振子です。
ハイパワーLED
接点型タクトスイッチ
スイッチ用10ｋΩ抵抗

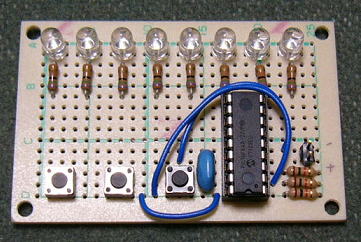

この上にICやLEDなど様々な部品を乗せ構成させる基盤
